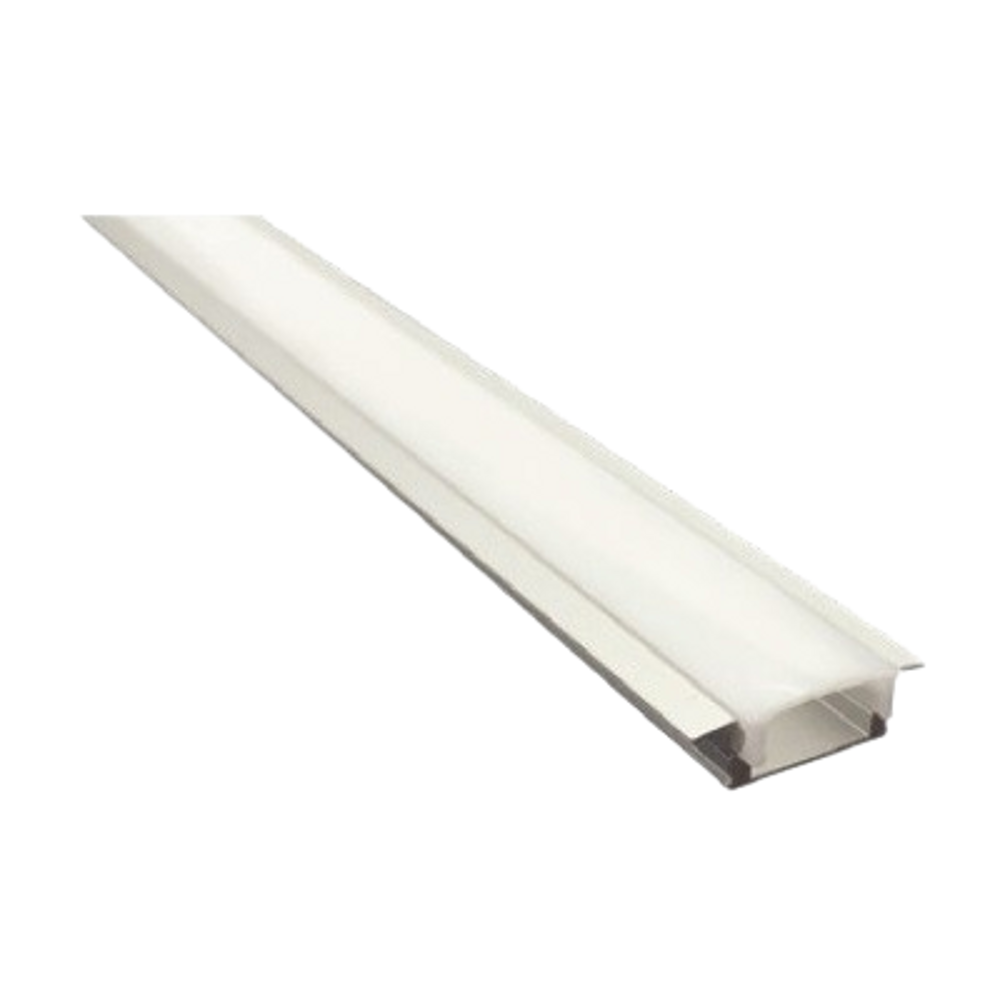

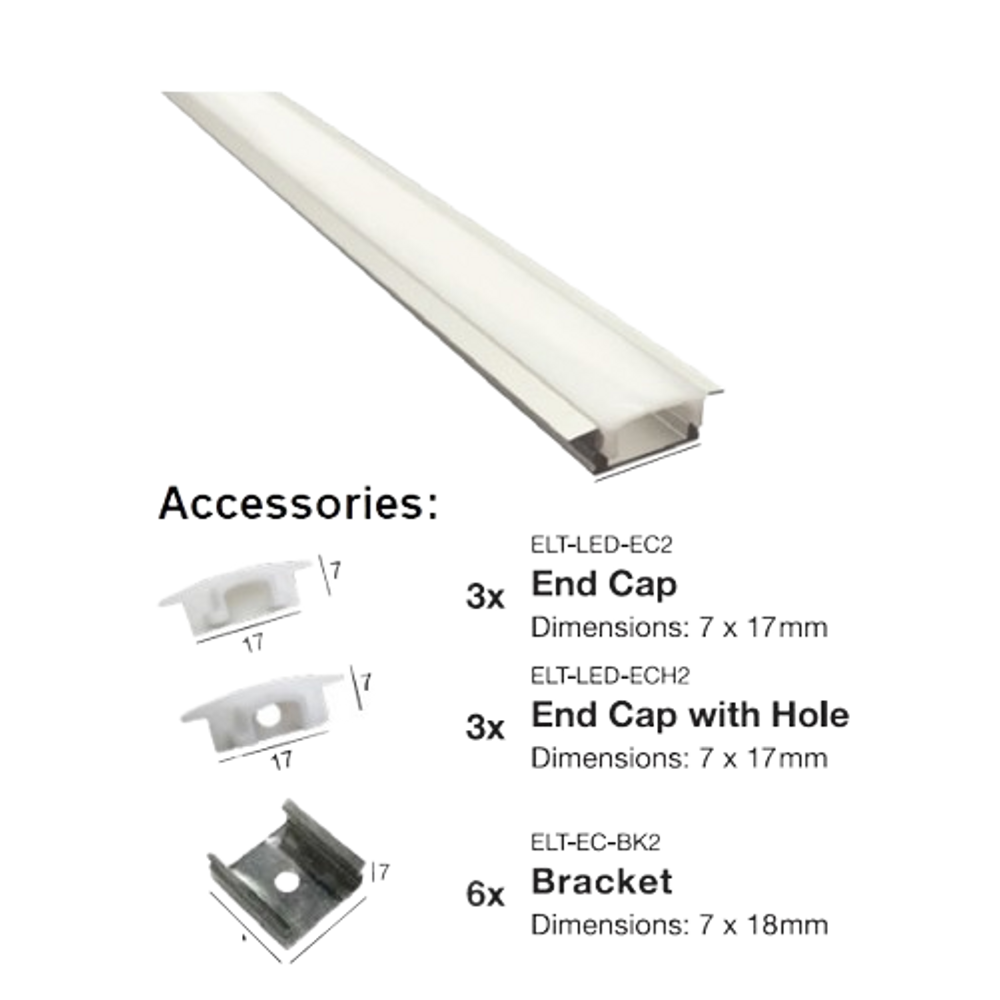

S.H LED Aluminium U Channel, Type 2, 300mm and 350mm

S.H aluminium U channel for LED strip, Type 2, in 300mm and 350mm lengths. Model ELT-LED-UAC2.

Specifications

• Model No.: ELT-LED-UAC2
• SKU: SH-PRF-LED-U2
• Profile: U channel, Type 2
• Material: aluminium
• Lengths: 300mm, 350mm

Why mount LED strip in a channel

Three reasons, and the first surprises people. Heat — LED strip stuck straight onto plasterboard or timber has nowhere to lose its heat, and heat is what shortens LED life. An aluminium channel acts as a heatsink and the strip lasts materially longer.

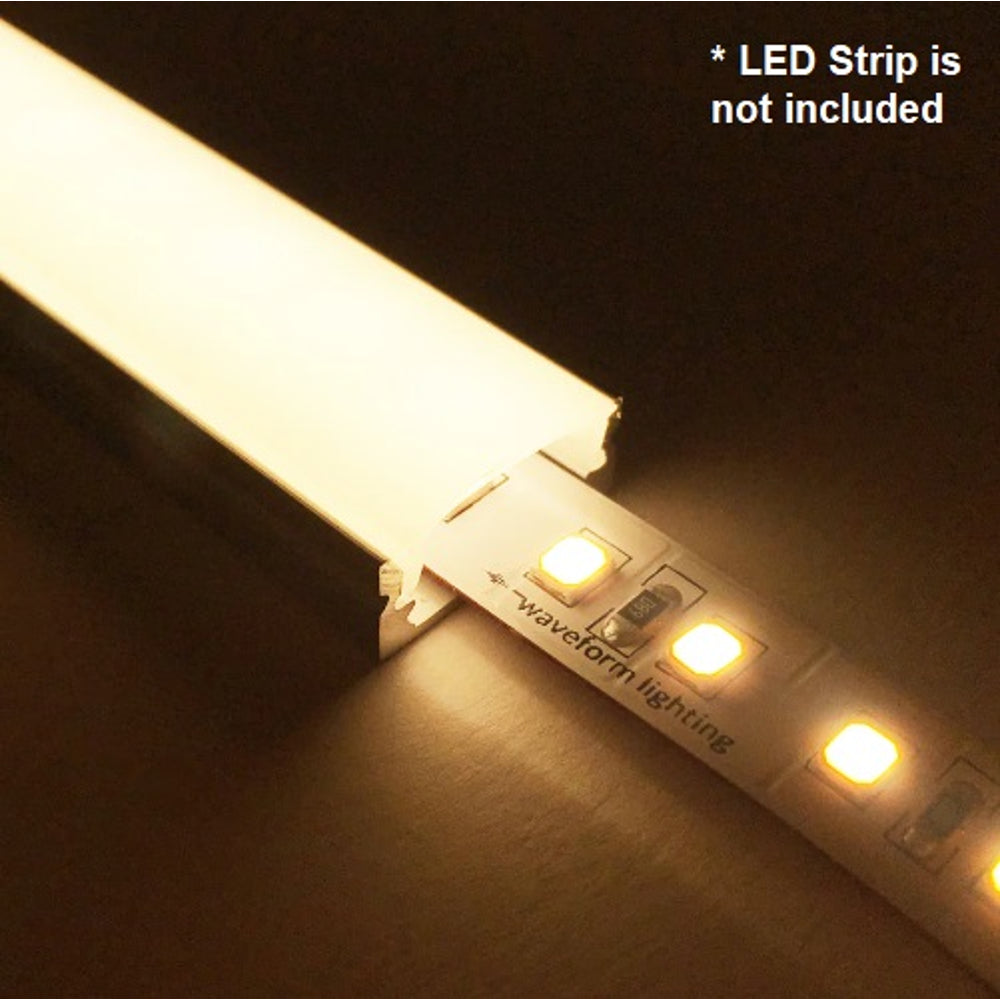

Appearance — bare strip shows every individual diode as a row of bright dots. A channel with a diffuser blends them into a continuous line of light, which is the difference between a finished job and an obvious strip of tape.

Protection — the strip is held straight, shielded from knocks, and can be removed and replaced later without peeling adhesive off a painted surface.

Where it is used

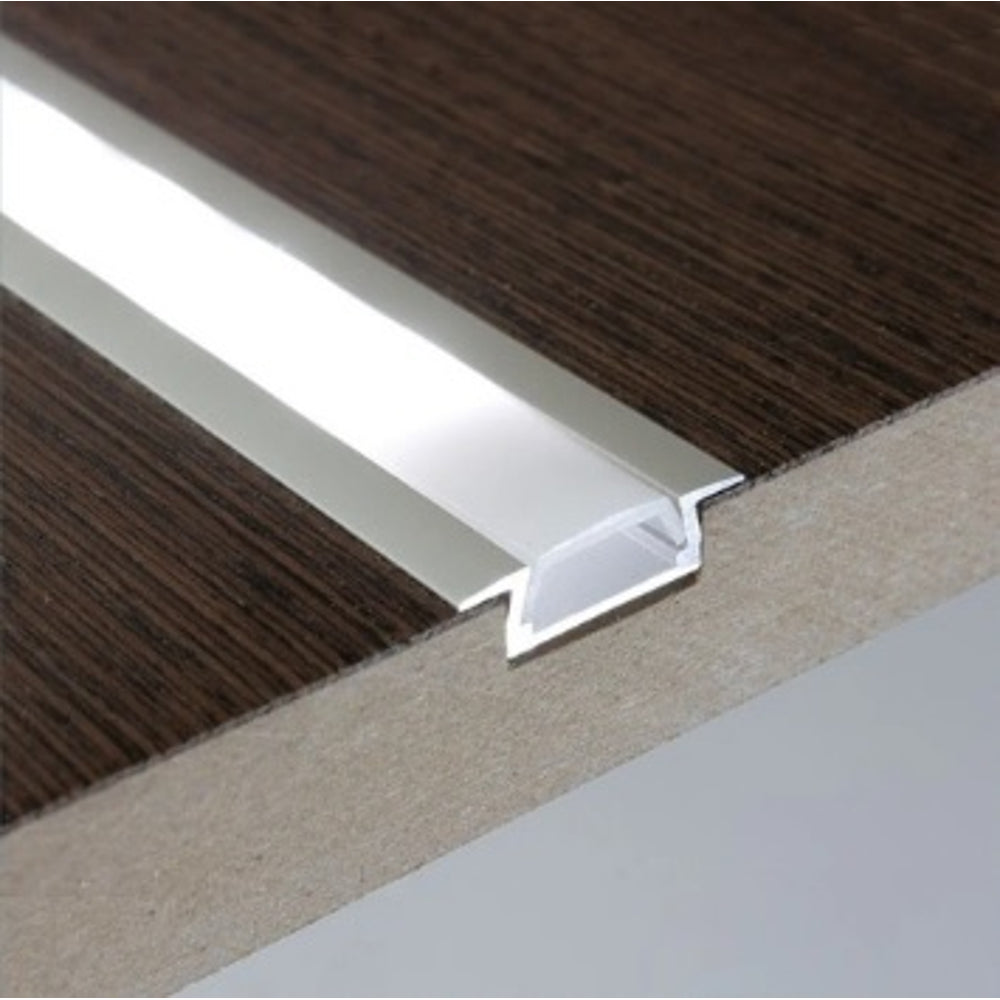

• Under-cabinet and worktop lighting in kitchens
• Wardrobe, display and shelf lighting
• Cove and ceiling detail lighting
• Stair and skirting lighting

Check the width of your LED strip against the channel before ordering. Need help choosing? WhatsApp us at +65 8978 9808.
