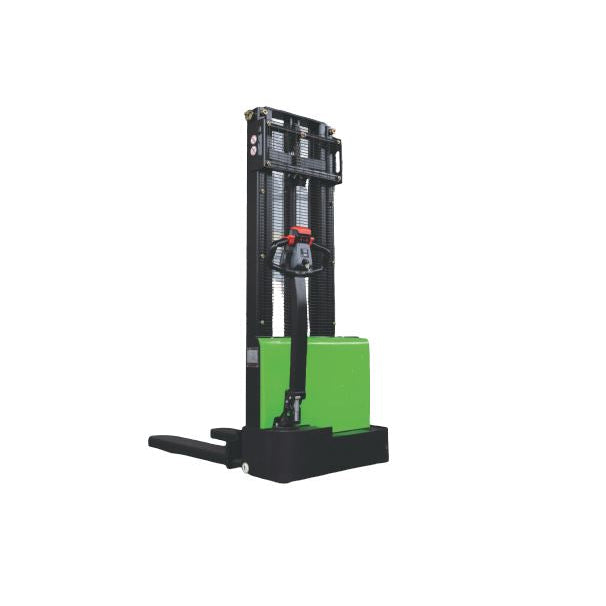

AIKO 3.3M 1.5 TON FULLY ELECTRIC STACKER PU WHEEL | MODEL: PT-AIKO152-3.3

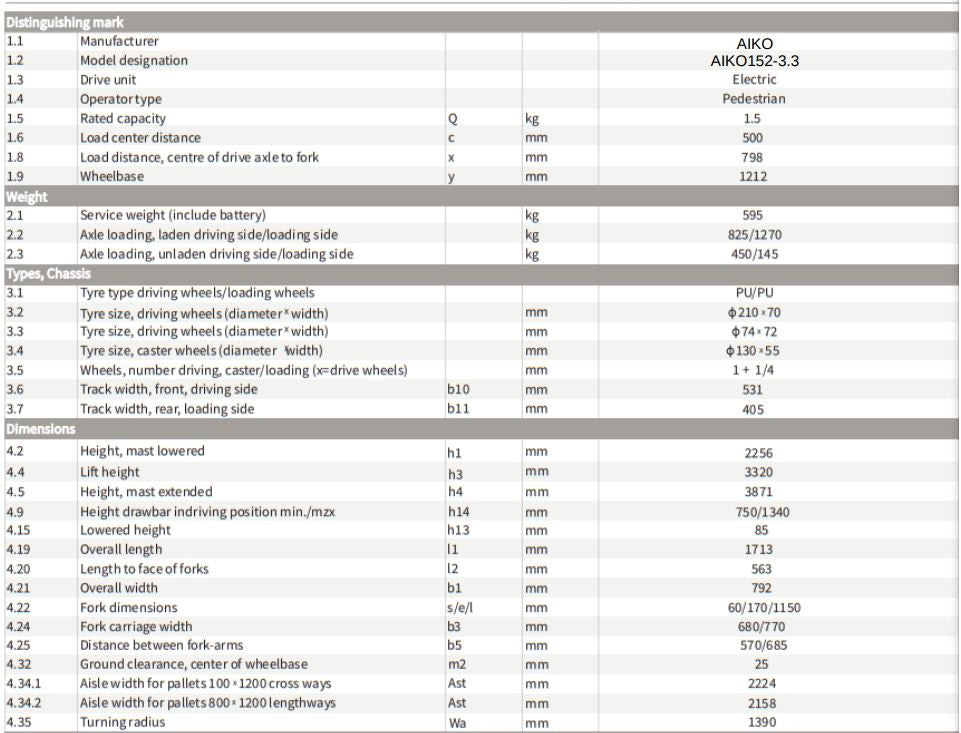

 Distinguishing Mark

• Manufacturer: AIKO
• Model designation: AIKO152-3.3
• Drive unit: Electric
• Operator type: Pedestrian
• Rated capacity: 1.5kg
• Load center Distance: 500mm
• Load distance, centre of drive acle to fork: 798mm
• Wheelbase: 1212mm

Weight

• Service weight (include battery): 595kg
• Axle loading, laden driving side/loading side: 825kg/1270kg
• Axle loading, unladen driving side/loading side: 450kg/145kg

Types, Chassis

• Tyre type driving wheels/loading wheels: PU
• Tyre size, driving wheels (diameter*width): 210mm x 70mm
• Tyre size, driving wheels (diameter*width): 74mm x 72mm
• Tyre size, caster wheels (diameter*width): 130mm x 55mm
• Wheels, number driving caster/loading (x-drice wheels): 1mm + 1/4mm
• Track width, front, driving side: 531mm
• Track wideth, rear, loading side: 405mm

Dimensions

• Height, mast lowered: 2256mm
• Lift height: 3320mm
• Height, mast extended: 3871mm
• Height drawbar indriving position min./mzx: 750mm/1340mm
• Lowered height: 1713mm
• Overall width: 792mm
• Fork dimensions: 60mm/170mm/1150mm
• For carriage width: 680mm/770mm
• Distance between fork-arms: 570mm/685mm
• Ground clearance, center of wheelbase: 25mm
• Aisle width for pallets 100 x 1200 cross ways: 2224mm
• Aisle width for pallets 800 x 1200 lengthways: 2158mm
• Turning radius: 1390mm

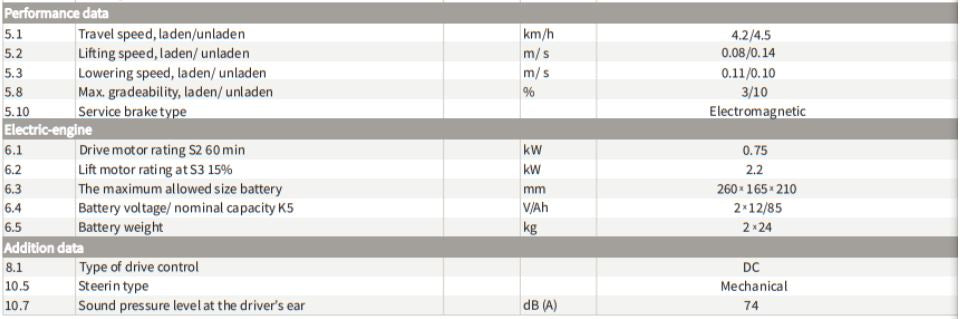

Performance data

• Travel speed, laden/unladen: 4.2/4.5km/h
• Lifting speed, laden/unladen: 0.08/0.14m/s
• Lowering speed, laden/unladen: 0.11/0.10m/s
• Max. gradeability, laden/unladen: 3/10%
• Service brake type: Electromagnetic

Electric-engine

• Drive motor rating S2 60 min: 0.75kW
• Lift motor rating at S3 15%: 2.2kW
• The maximum allowed size battery: 260 x 165 x 210V/Ah
• Battery voltage/ nominal capacity K5: 2 x 12/85
• Battery weight: 2 x 24kg

Addition data

• Type of drive control: DC
• Steering type: Mechanical
• Sound pressure level at the driver's ear: 74db(A)

Sold per UNIT.
