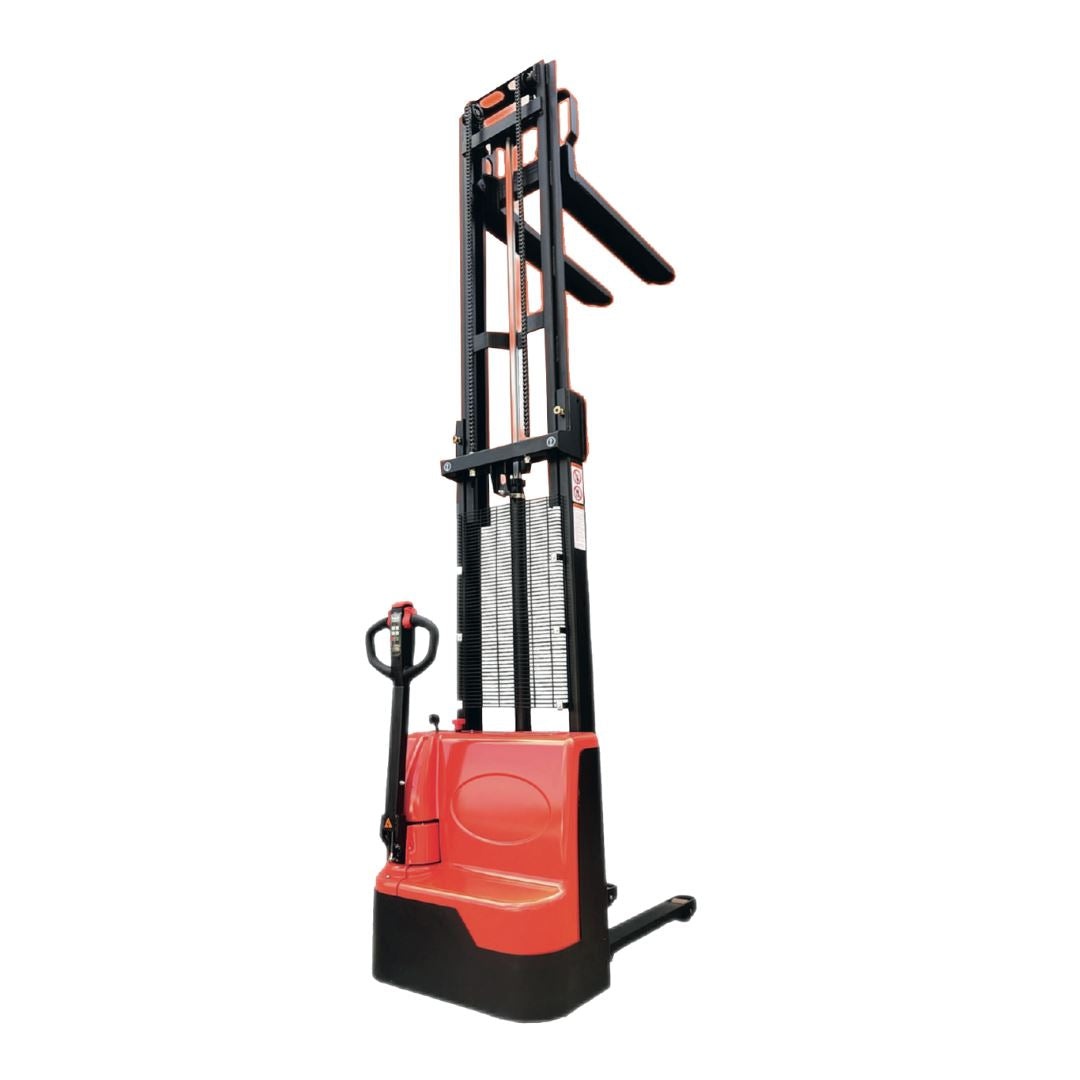

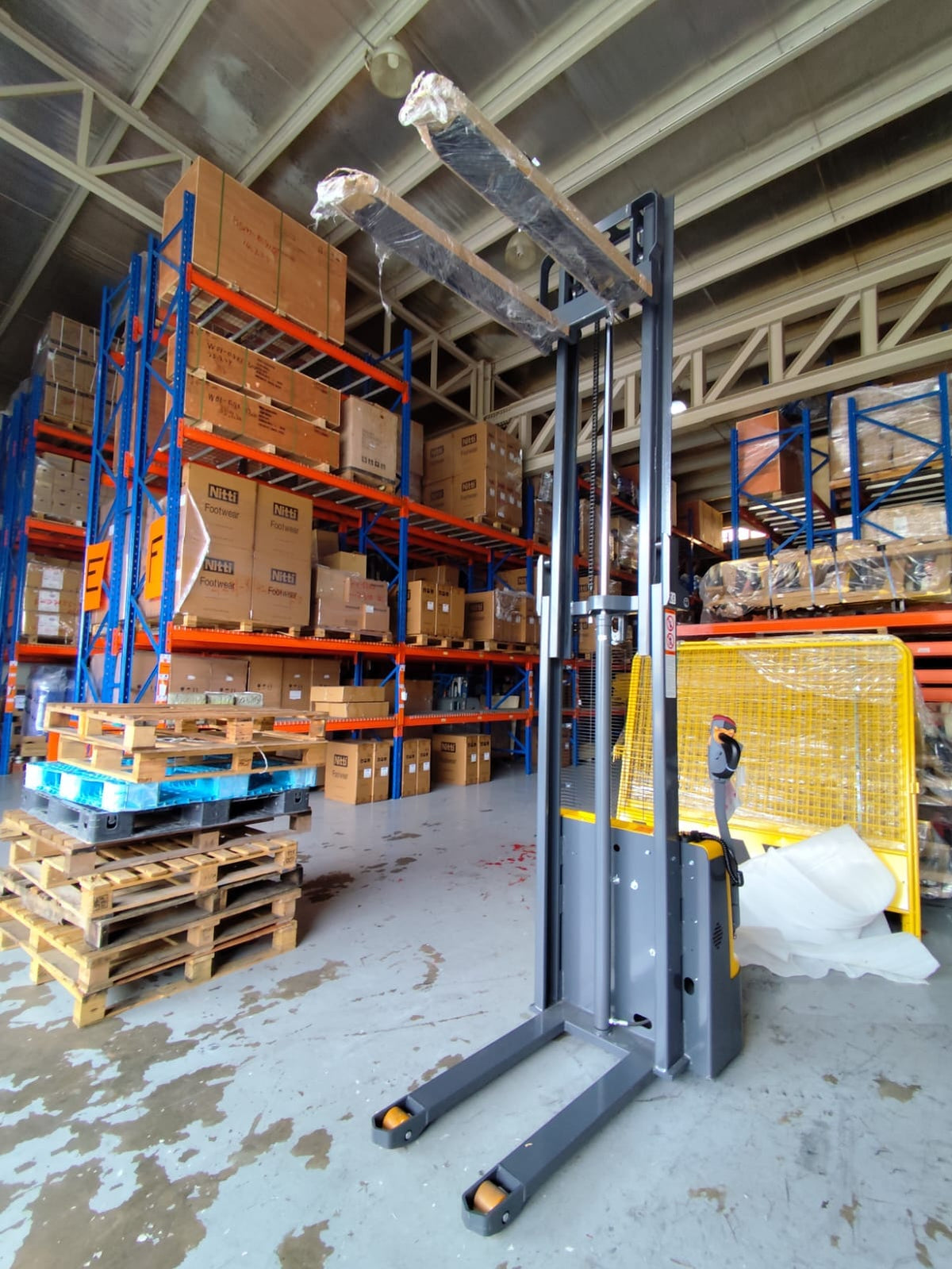

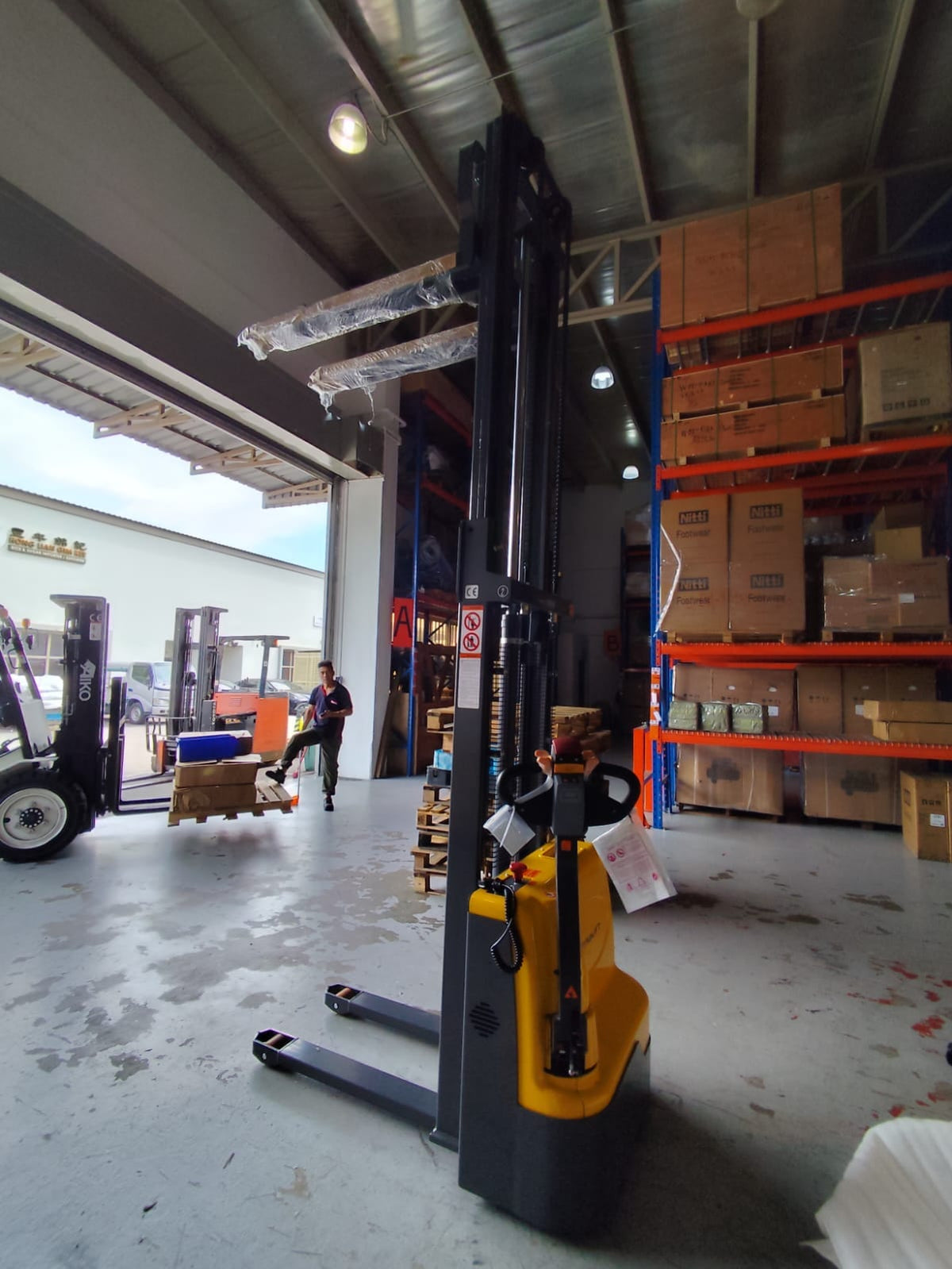

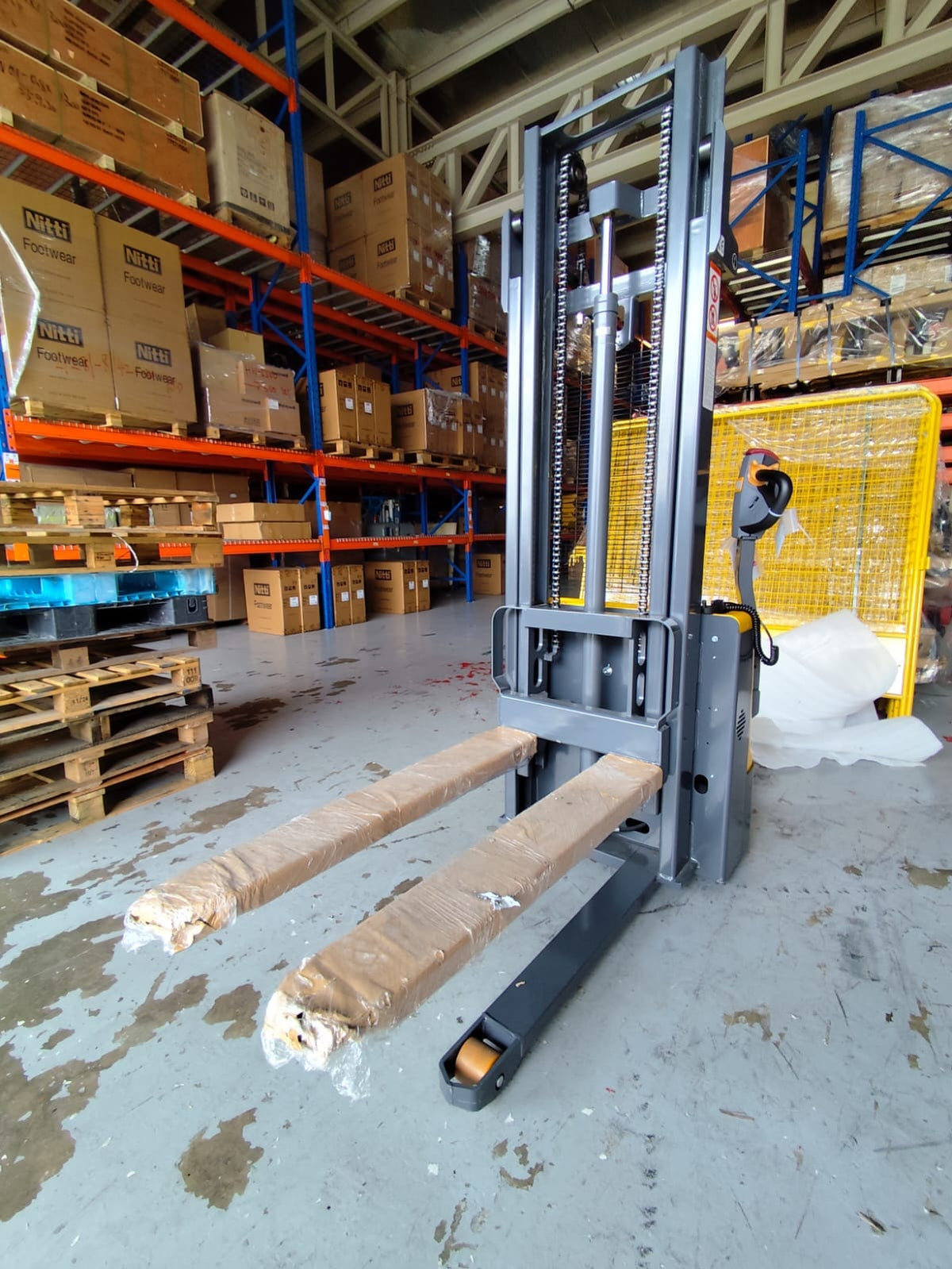

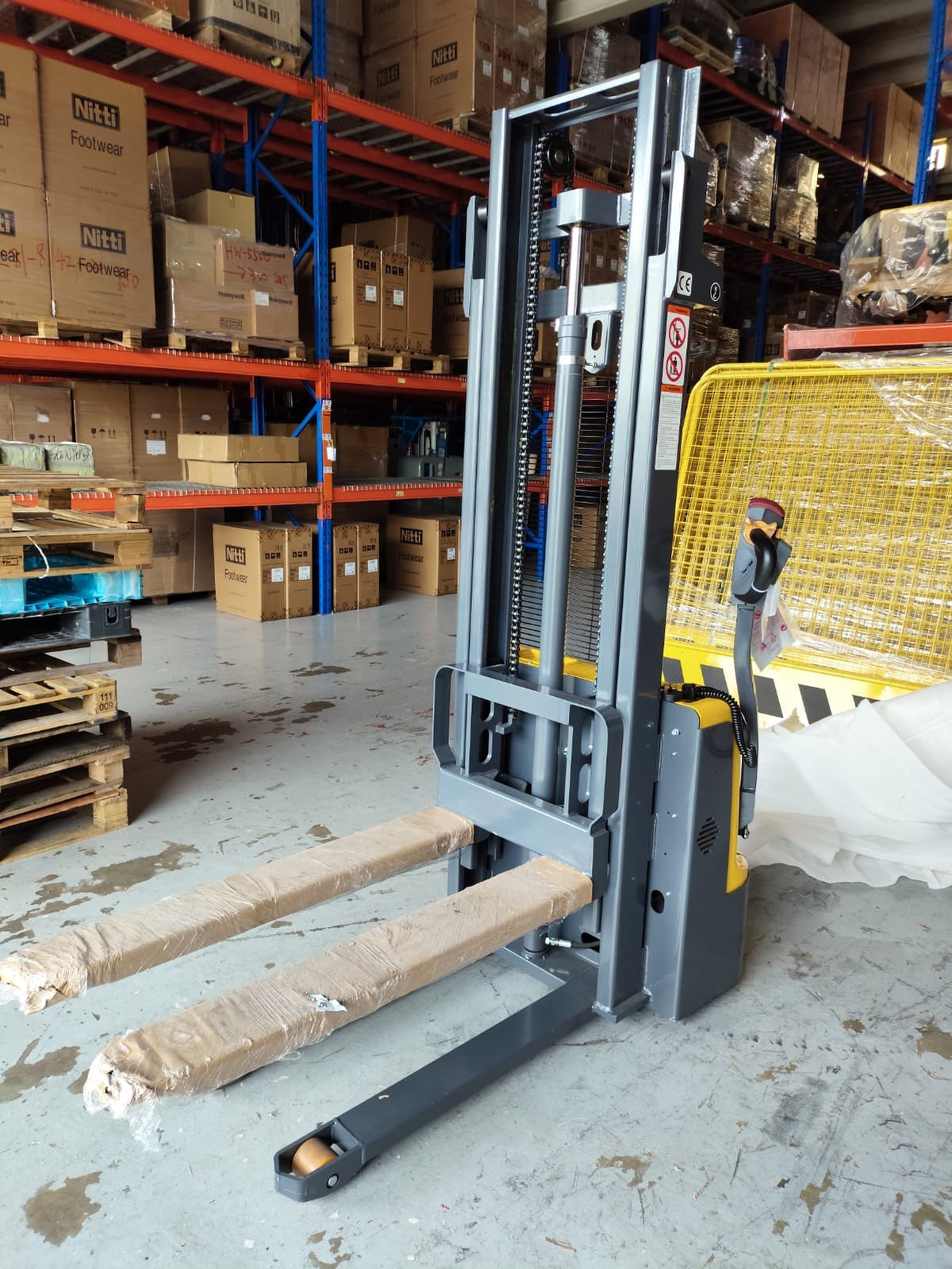

AIKO 3M FULL ELECTRICAL SELF-PROPELLED 1.5 TON STACKER FOR OPEN PALLET | MODEL : PT-AIKO1530E-3

The Aiko 153E series is an light-duty walkie electric stacker, with rated capacity of 1500kg/3300Ibs and lifting height from 1600mm/63 inch to 3500mm/ 138 inch.

The compact and light design is suitable for variety light duty applications in warehouse. With the mono mast stacker we increase the agronomy of the workplace at a very attractive price level. Each worker can place the pallets on individual suitable height. Increasing the productivity.

Features :

• Ideal solution for light-duty applications
• Built-in charger for high autonomy
• Battery discharge indicator with automatic lift cut-off function for higher battery lifetime
• Sideways long tiller for high stability and perfect view.
• Canbus Multifunction Intelligent Handle with Code Lock
• Turtle speed
• Upright working
• Battery indicator
• Error code indicator
• Maintenance Friendly

Specifications :

• Distinguishing mark
• Manufacturer : Aiko
• Model designation : Aiko 152
• Drive unit : Electric
• Operator type : Pedestrian
• Rated capacity : 1500 kg
• Load Center Distance : 600 mm
• Load Distance : 876 mm
• Wheelbase : 1235 mm
• Weight
• Service Weight (include battery) : 450 kg

• Battery
• Continuous running time : 4 hours
• Intermittent running time : Up to 24 hours
• Charging time : 2 hours

• Types,  Chassis
• Tire type driving wheels / loading wheels : PU
• Tire Size, front (Diameter x Width) : Φ80 x 70 mm
• Tire Size, rear (Diameter x Width)  : Φ210 x 70 mm
• Balance wheels (Dimensions) : Φ150 x 50 mm
• Wheels, number driving, caster/loading ( x=drive wheels) : 2/1
• Track width, front, driving side : 400 mm
• Track width, rear, loading side : 540 mm
• Dimensions
• Height, mast lowered : 2060 mm
• Lift Height : 3000 mm
• Height, mast extended : 3460 mm
• Height draw bar in driving position min./min : 880/1320 mm
• Lowered height : 90 mm
• Overall length : 1748 mm
• Length to face of forks : 1067 mm
• Overall width : 800 mm

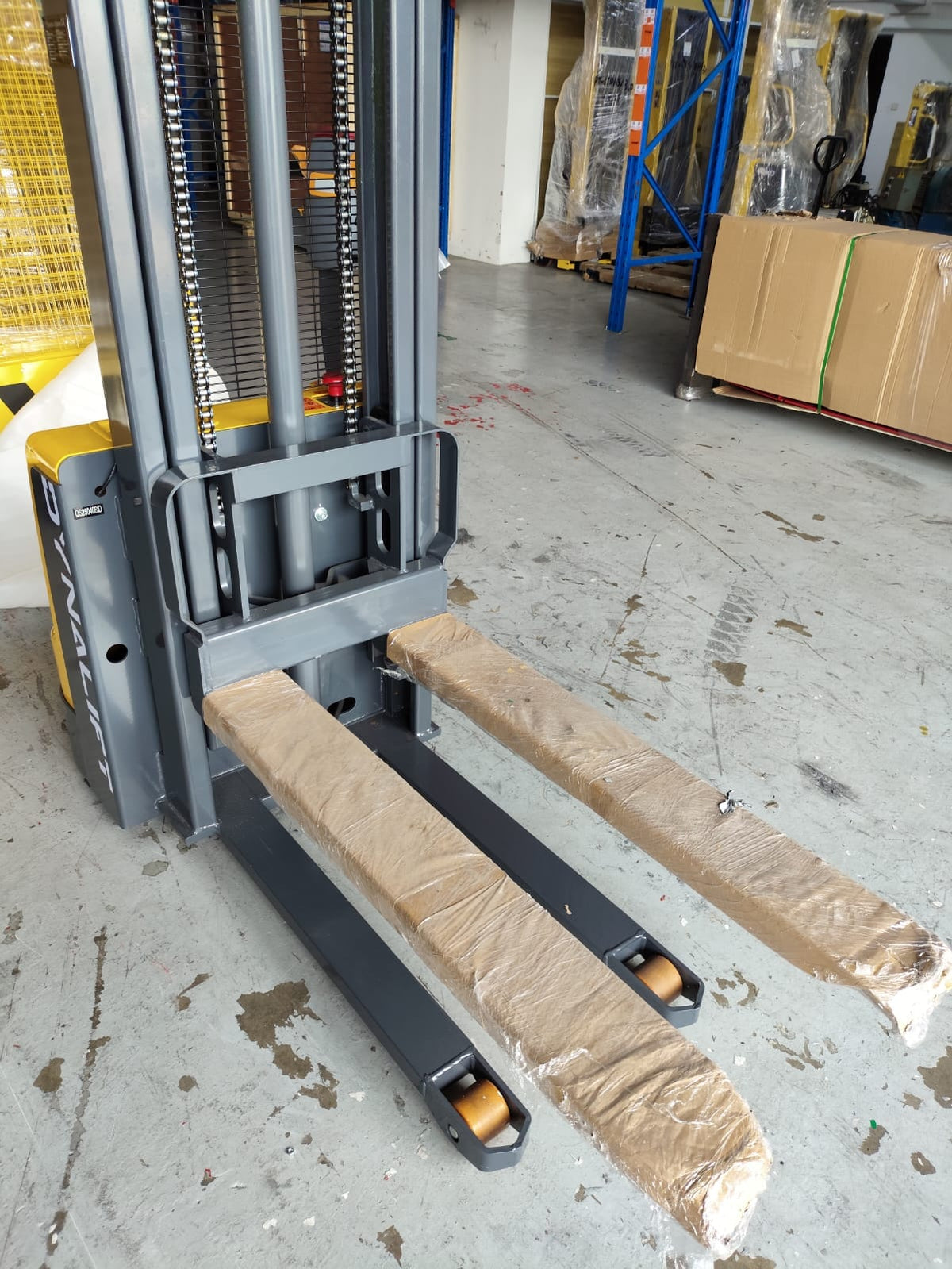

• Fork dimensions : 55/160/1125 mm
• Fork carriage width : 680/770 mm
• Ground clearance, center of wheelbase : 35 mm
• Aisle width for pallet 1000 x 1200 cross ways : 2305 mm
• Aisle width for pallet 800 x 1200 length ways : 2230 mm
• Turning radius : 1440 mm
• Performance data
• Travel Speed, laden/ unladen : 3.5/4.0 km/h
• Lifting Speed, laden/ unladen : 81/130 m/s
• Lowering speed, laden/ unladen : 130/80 m/s
• Max. grade ability, laden/ unladen : 3/7 %
• Service brake type : Electromagnetic
• Electric - engine
• Drive motor rating S2 60 min : 2.2 kW
• Lift motor rating at S3 15 % : 0.75 kW
• The maximum allowed size battery : 260 x 165 x 210 mm
• Battery voltage/ nominal capacity K5 : 2 x 12/85 V/Ah
• Batter weight : 2 x 24 kg
• Addition data
• Type of drive control : DC
• Steerin type : Mechanical
• Sound pressure level at the driver's ear : 65 dB(A)

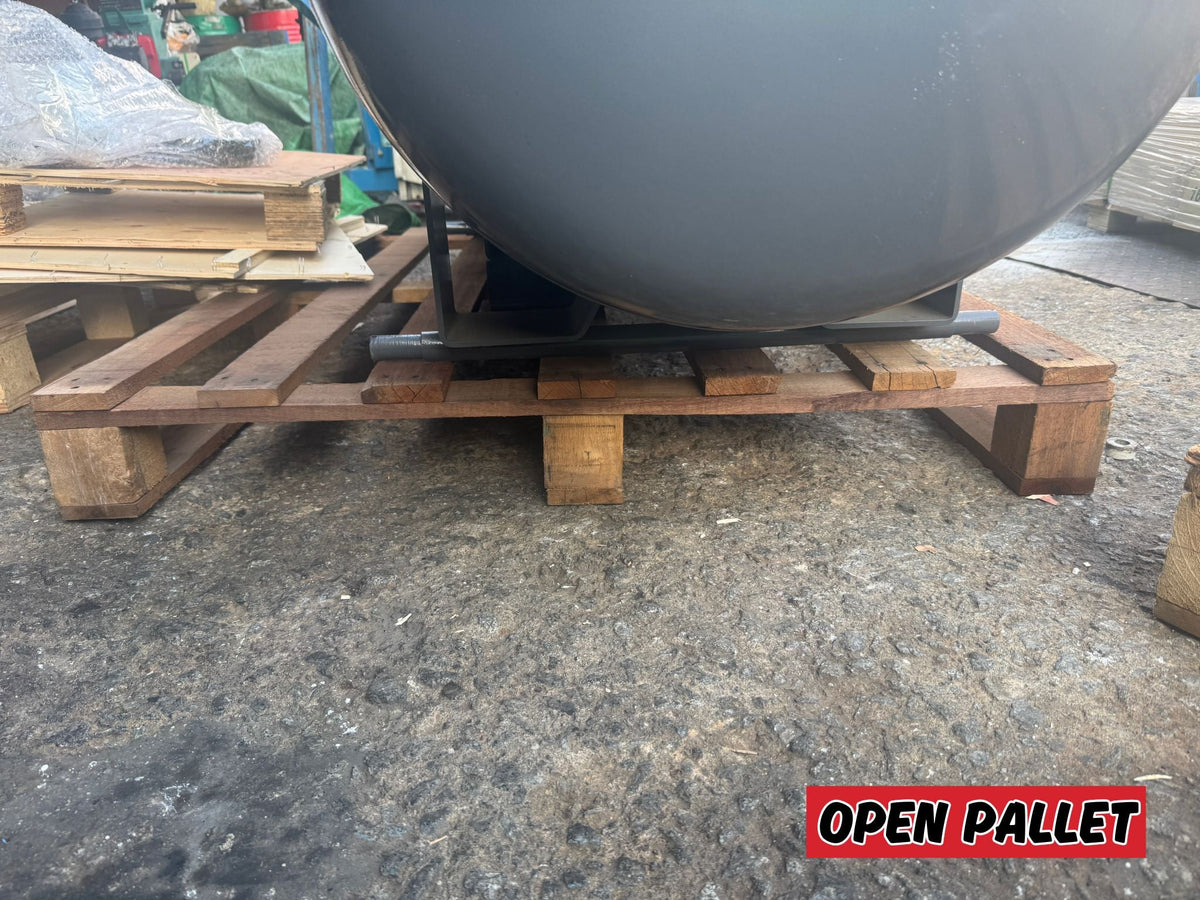

*Please take note only for open pallet

Sold per UNIT.
