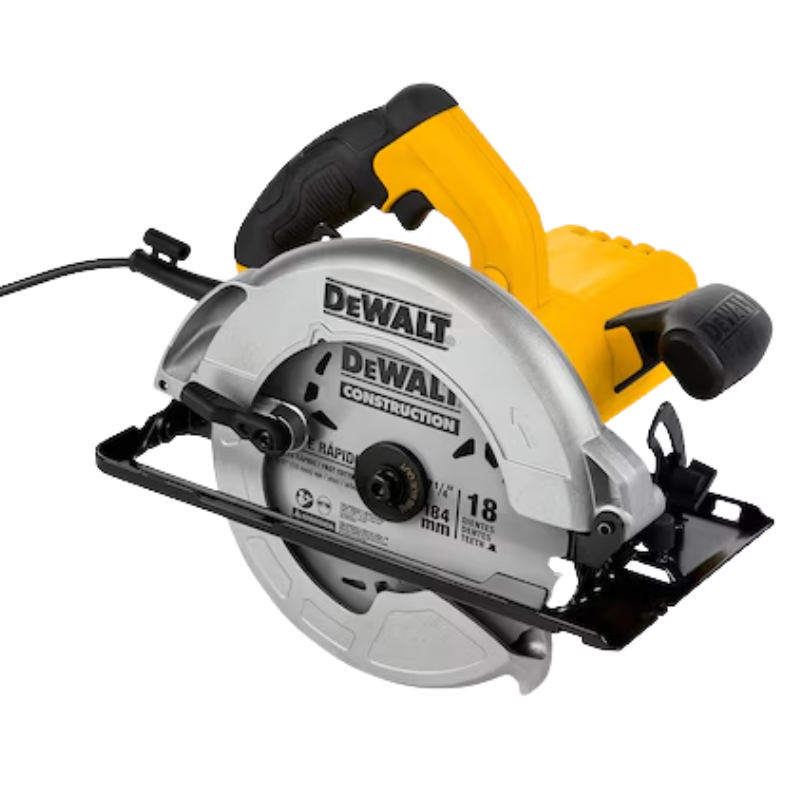

DeWalt DWE5615-B1 Corded 190mm (7-1/2") Circular Saw, 1500W

DeWalt DWE5615-B1 corded circular saw, 190mm (7-1/2in) blade, 1,500W input with 950W output. Bevels to 45°.

Specifications

• Blade diameter: 190mm
• Blade bore: 30mm
• Power input: 1,500W
• Power output: 950W
• No-load speed: 5,500 rpm
• Maximum depth of cut at 90°: 68mm
• Maximum depth of cut at 45°: 48mm

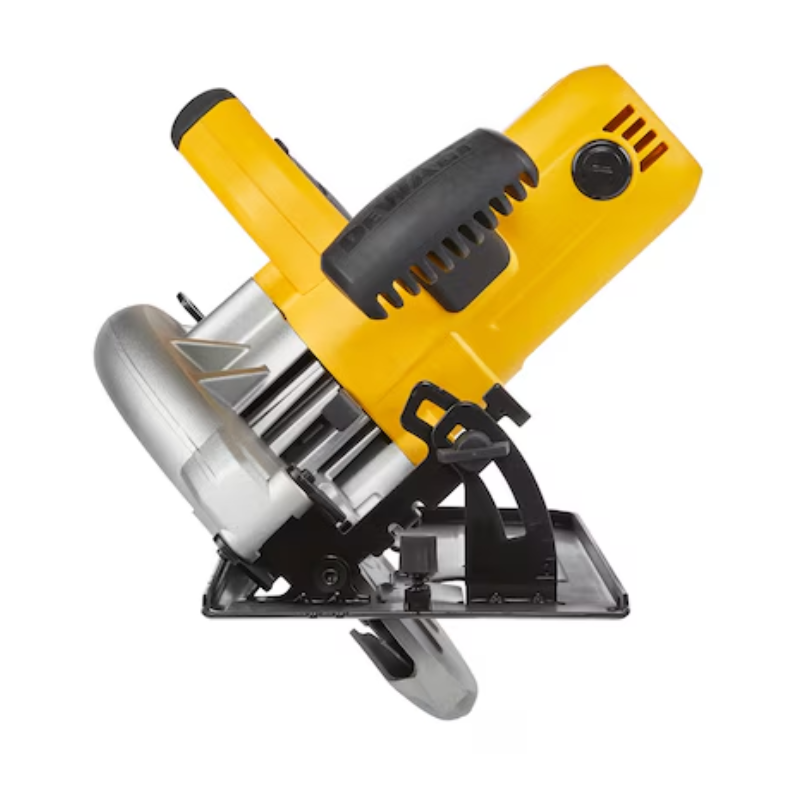

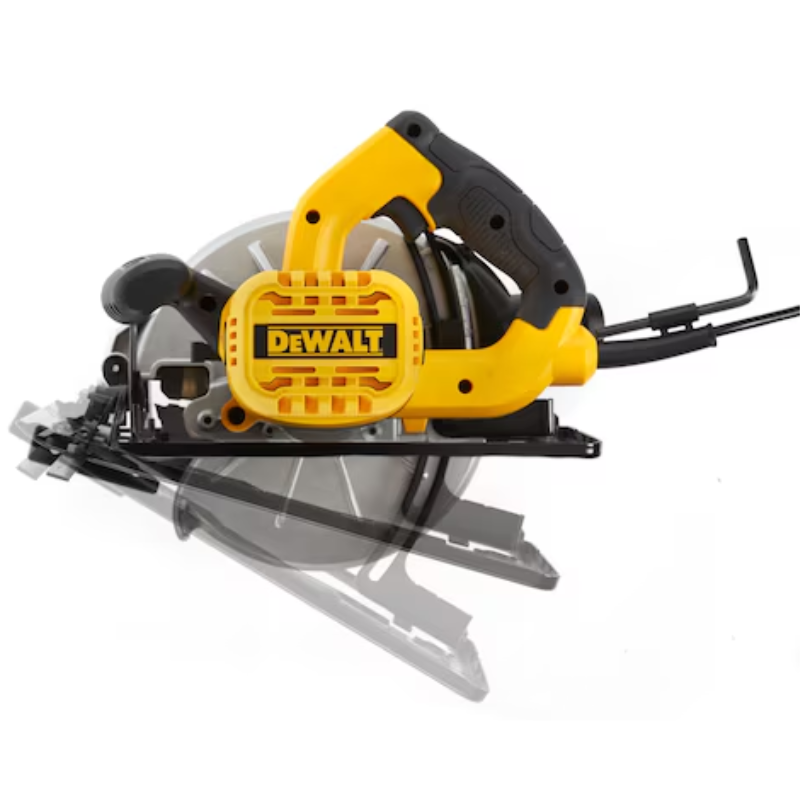

• Bevel capacity: 45°
• Dimensions: 290mm long × 185mm high
• Weight: 4kg

The depth of cut is the number that matters

68mm at 90° takes it cleanly through 2-inch timber, decking, joists and multiple sheets of ply in one pass. At 45° it drops to 48mm, which is normal — the blade is travelling further through the material at an angle. Plan rafter and bevel cuts around the 48mm figure, not the 68mm one.

Corded, and why

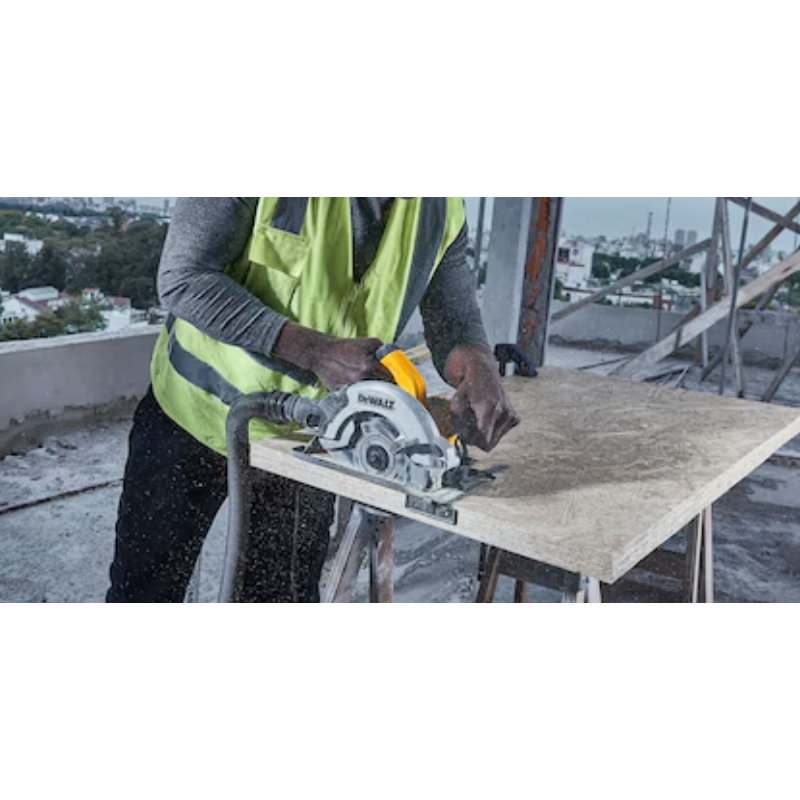

1,500W into a 190mm blade does not sag when it meets wet timber or a dense sheet, and it will run all day. For bench work, cutting out sheet goods, or any job with a lot of repetitive cutting, a corded saw remains both faster and far cheaper than a cordless saw plus the batteries to keep it fed.

Getting a straight, safe cut

• Set the depth just past the material — around 5mm of blade showing below. Deeper is not safer; it increases kickback risk and exposes more blade.
• Support both sides of the cut so the offcut cannot pinch the blade. Pinching is the main cause of kickback.
• Let the blade reach full speed before entering the work, and keep the shoe flat throughout.
• Check the bore. 30mm — a blade with the wrong bore is dangerous even with a reducer.
• Never wedge the lower guard open.
